60KW High-Frequency Induction Heating Machine for Bearings and Gears
  • 60KW High-Frequency Induction Heating Machine for Bearings and Gears
  • 60KW High-Frequency Induction Heating Machine for Bearings and Gears
  • 60KW High-Frequency Induction Heating Machine for Bearings and Gears
  • 60KW High-Frequency Induction Heating Machine for Bearings and Gears
  • 60KW High-Frequency Induction Heating Machine for Bearings and Gears
  • 60KW High-Frequency Induction Heating Machine for Bearings and Gears
60KW High-Frequency Induction Heating Machine for Bearings and Gears

60KW High-Frequency Induction Heating Machine for Bearings and Gears

Place of Origin CHINA
Nama merek ZHENGZHOU LANSHUO
Sertifikasi CE
Model Number LSW-60
Rincian produk
DC current:
90A
DC voltage:
500V
Input voltage:
Three-phase 380V 50-60HZ
Heating frequency:
15-35KHZ
Air switch:
3*150A
Ground wire:
1mm²
Water pressure:
0.15-0.2MPa
Cooling system:
2.5m³Water tank or 6T closed cooling water tower
Input power wire:
45mm²copper wire
Input power control switch:
3*150A
Equipment ground wire:
1mm²soft copper wire
Menyoroti:

60KW induction heating machine for bearings

,

high-frequency induction heater for gears

,

industrial induction melting furnace with warranty

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
1 SET
Harga
2800-4000USD
Packaging Details
PLYWOOD PACKAGING
Delivery Time
3-5 WORKING DAYS
Payment Terms
T/T
Deskripsi Produk

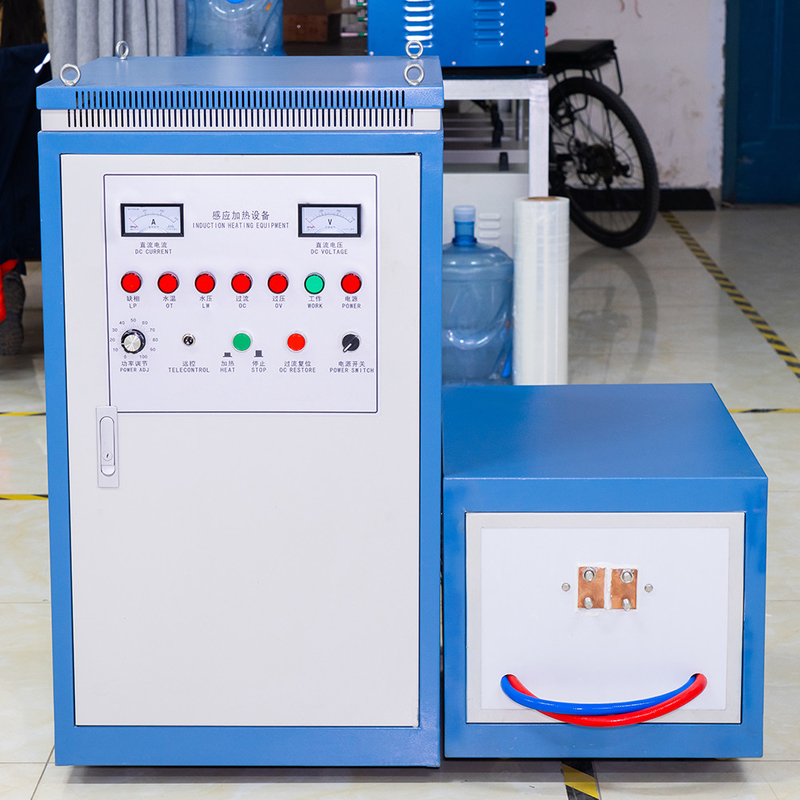

60KW High-frequency Induction Heating Machine

Professional-grade induction heating equipment designed for heat treatment of bearings, gears, copper pipes, and various industrial processes.

Technical Specifications
Parameter Value
DC Current 90A
DC Voltage 500V
Input Voltage Three-phase 380V 50-60HZ
Heating Frequency 15-35KHZ
Air Switch 3×150A
Ground Wire 1mm²
Water Pressure 0.15-0.2MPa
Cooling System 2.5m³ Water tank or 6T closed cooling water tower
Dimensions & Weight
Host Dimension (packed): 790×610×1180mm
Auxiliary Engine Dimension (packed): 520×800×610mm
Weight (packed): 155kg
Power Installation
Input Power Wire: 45mm² copper wire
Input Power Control Switch: 3×150A
Equipment Ground Wire: 1mm² soft copper wire
Cooling Water Installation
Control Cabinet Water Connections: Water intake: 1, Water outlet: 1
Auxiliary Engine Water Connections: Water intake: 1, Water outlet: 1
Water Pipe Specifications: Inlet: 25mm inner diameter, Outlet: 25mm inner diameter
Product Images
60KW High-Frequency Induction Heating Machine for Bearings and Gears 0
60KW High-Frequency Induction Heating Machine for Bearings and Gears 1
60KW High-Frequency Induction Heating Machine for Bearings and Gears 2
60KW High-Frequency Induction Heating Machine for Bearings and Gears 3
60KW High-Frequency Induction Heating Machine for Bearings and Gears 4
60KW High-Frequency Induction Heating Machine for Bearings and Gears 5
60KW High-Frequency Induction Heating Machine for Bearings and Gears 6
60KW High-Frequency Induction Heating Machine for Bearings and Gears 7
60KW High-Frequency Induction Heating Machine for Bearings and Gears 8
60KW High-Frequency Induction Heating Machine for Bearings and Gears 9
