30KW Induction Brazing Machine for Industrial Heating Applications
  • 30KW Induction Brazing Machine for Industrial Heating Applications
  • 30KW Induction Brazing Machine for Industrial Heating Applications
  • 30KW Induction Brazing Machine for Industrial Heating Applications
  • 30KW Induction Brazing Machine for Industrial Heating Applications
  • 30KW Induction Brazing Machine for Industrial Heating Applications
  • 30KW Induction Brazing Machine for Industrial Heating Applications
30KW Induction Brazing Machine for Industrial Heating Applications

30KW Induction Brazing Machine for Industrial Heating Applications

Place of Origin CHINA
Nama merek ZHENGZHOU LANSHUO
Sertifikasi CE
Model Number LSW-30
Rincian produk
Power:
30kw
DC current:
50A
DC voltage:
500V
Input voltage:
Three-phase 380V/420V/440V,50-60HZ
Heating frequency:
25-50KHZ
Air switch:
3*100A
Ground wire:
1mm²
Water pressure:
0.15-0.2MPa
Input power cord:
10mm²copper wire
Input power control switch:
3*100A
Equipment grounding wire:
1mm²soft copper wire
Menyoroti:

30KW induction brazing machine

,

industrial induction heating equipment

,

high-power induction melting furnace

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
1 SET
Harga
1200-2000USD
Packaging Details
PLYWOOD PACKAGING
Delivery Time
3-5 WORKING DAYS
Payment Terms
T/T
Deskripsi Produk
Industrial 30KW Electromagnetic Steam Generator Components-Frequency Conversion Induction Heating Machine Heating Element Motor
Technical Specifications
Parameter Value
Power 30KW
DC current 50A
DC voltage 500V
Input voltage Three-phase 380V/420V/440V, 50-60HZ
Heating frequency 25-50KHZ
Air switch 3*100A
Ground wire 1mm²
Water pressure 0.15-0.2MPa
Dimension (after packing) 750mm × 350mm × 720mm
Weight (after packing) 58KG
Power Installation Requirements
Component Specification
Input power cord 10mm² copper wire
Input power control switch 3*100A
Equipment grounding wire 1mm² soft copper wire
Cooling System Configuration
Component Specification
Number of water connections Water intake: 1, Water outlet: 1
Water pipe specification Inlet/outlet pipe inner diameter: 25mm
Cooling system options 2m³ water tank + 1.5kw circulating pump (head 25m, flow 10m³/h) or 2P chiller
Standard Package Contents
Item Quantity
30kw induction brazing machine 1 set
Foot switch 1 set
Induction coil (custom designed for workpiece) 1 set

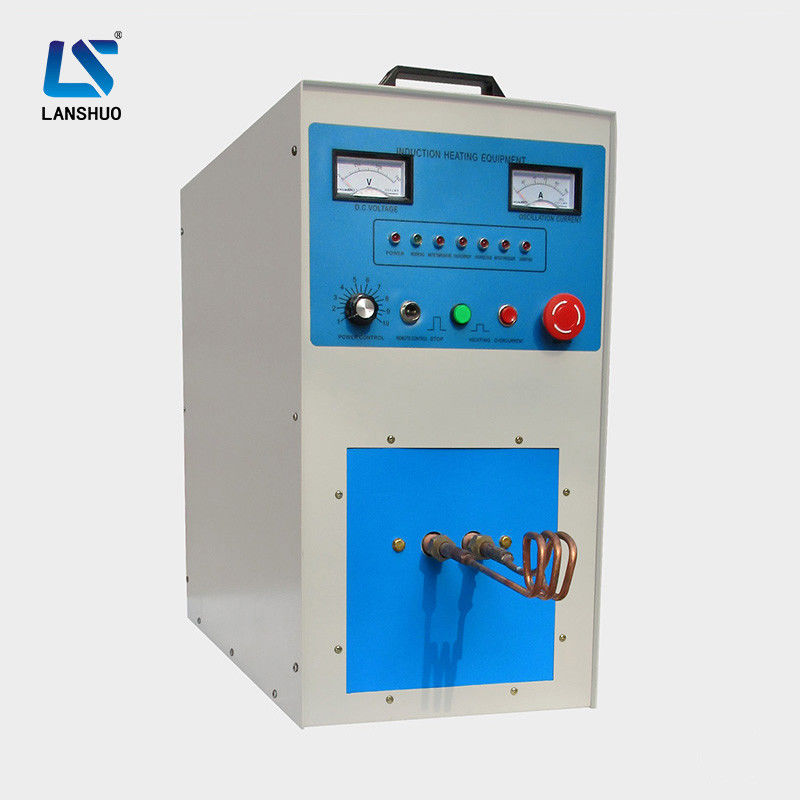

Product Images
30KW Induction Brazing Machine for Industrial Heating Applications 0 30KW Induction Brazing Machine for Industrial Heating Applications 1 30KW Induction Brazing Machine for Industrial Heating Applications 2 30KW Induction Brazing Machine for Industrial Heating Applications 3
Certification
30KW Induction Brazing Machine for Industrial Heating Applications 4
