Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
Shafts Roller Gear Rods Hardening Quenching Machine Tool

Shafts Roller Gear Rods Hardening Quenching Machine Tool

Tempat asal Cina
Nama merek Lanshuo
Sertifikasi CE
Nomor model LCN-1500
Rincian produk
Model:
LCN-1500
Jenis:
Alat mesin pendingin induksi
Aplikasi:
Poros Rods Gears Roller Hardening
Panjang maksimum bagian penjepit:
1250mm
Maks panjang bagian pendinginan:
1200 mm
Bagian -bagian pendinginan berdiameter terbesar:
600mm
Bagian total pendinginan terbesar:
150kg
Kecepatan putaran spindel:
0-200 RPS
Kecepatan bergerak benda kerja:
1-60 mm/s
Akurasi penentuan posisi seluler:
±0,1 mm
Menyoroti:

Shafts Hardening Machine Tool

,

Gear Rods Hardening Machine Tool

,

Roller Hardening Machine Tool

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 set
Harga
USD 10000-11000 / set
Kemasan rincian
Kasus kayu lapis
Waktu pengiriman
7-15 hari kerja setelah setoran
Syarat-syarat pembayaran
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan
1000 Set Per Tahun
Deskripsi Produk

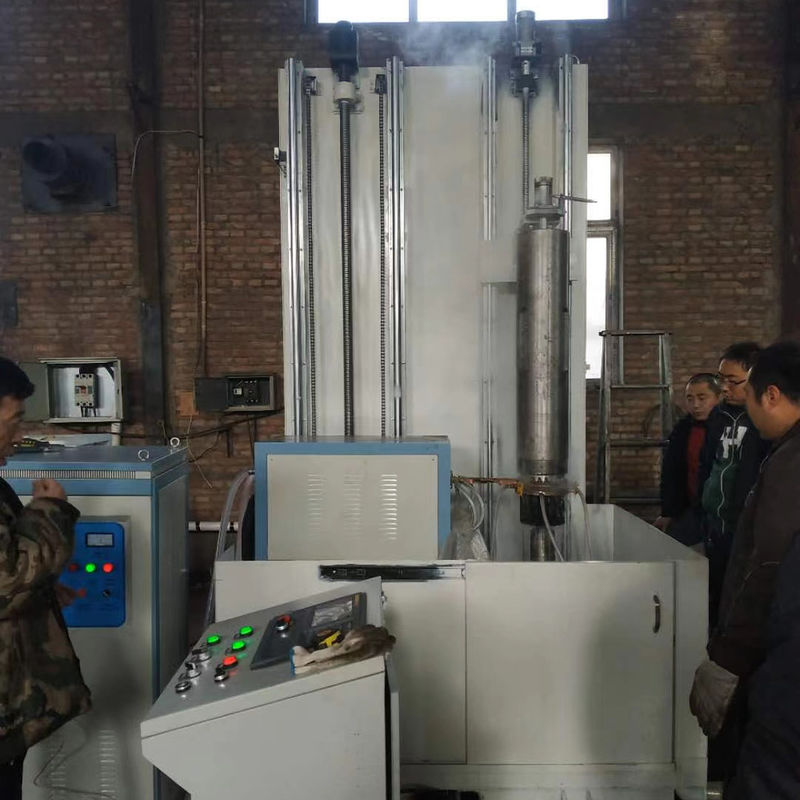

LCN-1500 CNC Induction Quenching Hardening Machine Tool

I. Main configuration of CNC Induction Quenching Machine Tool:
1. CNC system control;
2. Stepper motor drive;
3. Ball screw drive;
4. Cylinder linear guide rail, ball slider sliding;
5. AC variable speed motor drive sprocket chain, the light bar to rotate the workpiece;
6. AC gear motor drive screw, screw the top down;
7. Solenoid valve control water;
8. With a heating device control plug.
II. Main technical parameters of CNC induction quenching machine tools

Model
LSN-2000
LSN-1500
LSN-1000
LSN-600
Max lengths of the clamping parts(mm)
2050
1250
1050
650
Max length of quenching parts(mm)
2000
1200
1000
600
The largest diameter quenching parts(mm)
600
600
600
600
The largest total quenching parts (Kg)
150
150
150
150
Spindle rotation speed (rps)
0-200
0-200
0-200
0-200
Workpieces moving speed ( mm/s)
1-60
1-60
1-60
1-60
Mobile positioning accuracy (mm)
±0.1
±0.1
±0.1
±0.1


III. Advantages of Our CNC Hardening Machine Tool:
1. The induction heating machine adopts IGBT modules, high efficiency, energy saving.
2. Environmentally friendly. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
IV. Applications of Our CNC Hardening Machine Tool:
Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
Shafts Roller Gear Rods Hardening Quenching Machine Tool 0
Shafts Roller Gear Rods Hardening Quenching Machine Tool 1

Shafts Roller Gear Rods Hardening Quenching Machine Tool 2

V. Certificates
Shafts Roller Gear Rods Hardening Quenching Machine Tool 3
Shafts Roller Gear Rods Hardening Quenching Machine Tool 4Shafts Roller Gear Rods Hardening Quenching Machine Tool 5
